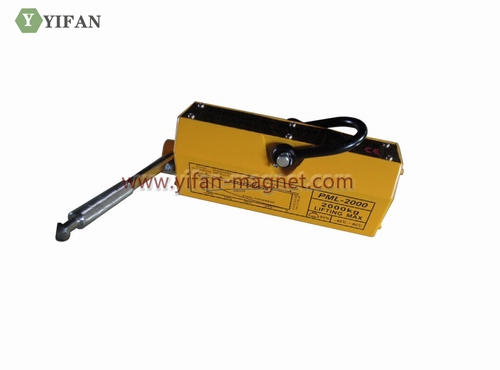

Magnetic Lifter: PML-2000
The Lifting Magnets have the strongest magnetic path and produced by NdFeB Magnet. This product is widely used in loading and unloading iron blocks，iron cylinders and other which can be attracted by magnetic material products. Lifting Magnets are widely used in factories, docks, warehouses and transportation.
We can offer many Models of Lifting Magnets, the lifting capacity is from 100Kg to 6000Kg, easy to manager and use. Such as PML-100, PML-300, PML-500, PML-1000, PML-2000, also can provide PML-5000, PML-6000 if customer needs.
|
Model |
Rated lifting capacity(kg) |
Max breakaway force(kg) |
Size (mm) |
Nw(kg) |
||
|
L |
W |
H |
||||
|
PML-100 |
100 |
350 |
92 |
65 |
69 |
2.5 |
|
PML-300 |
300 |
1050 |
165 |
95 |
95 |
9.5 |
|
PML-500 |
500 |
1750 |
235 |
115 |
116 |
21 |
|
PML-600 |
600 |
2100 |
235 |
115 |
116 |
21 |
|
PML-1000 |
1000 |
3500 |
310 |
135 |
140 |
42 |
|
PML-2000 |
2000 |
7000 |
394 |
170 |
205 |
100 |
|
PML-3000 |
3000 |
10500 |
580 |
214 |
215 |
190 |
|
PML-5000 |
5000 |
17500 |
600 |
235 |
290 |
295 |
|
PML-6000 |
6000 |
21000 |
800 |
235 |
290 |
395 |
